Types of Brick Bonds

Some of the different types of brick bonds are,

1. English bond,

2. Flemish bond,

3. Stretching bond,

4. Heading bond,

5. Garden wall bond,

6. Facing bond,

7. Raking bond,

8. Dutch bond,

9. English cross-bond,

10. Zig-Zag bond,

11. Silverlock’s bond.

For English and Flemish bond refer in our website.

3. Stretching bond:

In this arrangement of bonding, all the bricks are laid as stretchers. The overlap, which is usually of half brick, is obtained by commencing each alternate course with a half brick bat. Stretching bond is used for half brick wall only. This bond is also termed as running bond and is commonly adopted in the construction of half brick thick leaves of cavity walls, partition walls, etc. Since there are no headers, suitable reinforcement should be used for structural bond.

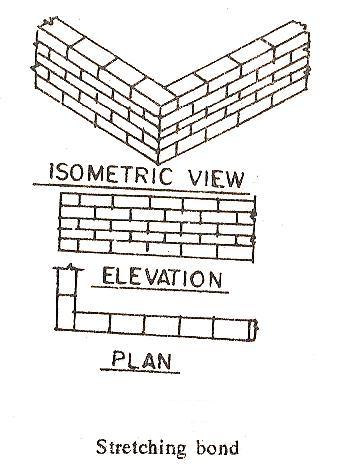

Stretching Bond

4. Heading bond :

In this type of bonding all the bricks are laid as headers on the faces. The overlap, which is usually-of half the width of the brick is obtained by introducing a three-quarter bat in each alternate course at quoins. This bond permits better alignment and  as such it is used for walls curved on plan. This bond is chiefly used for footings in foundations for better transverse distribution of load.

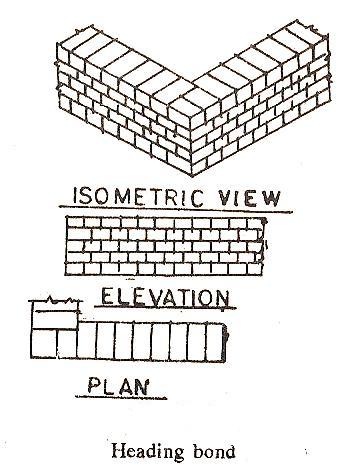

Heading Bond

5.Garden wall bond:

This type of bond is suitably adopted for one brick thick wall which may act as a garden wall or a boundary wall. In garden wall bond, it is possible to build uniform faces for a wall without much labour or expense. This type of bond is not so strong as English bond and its use is restricted to the construction of dwarf walls or other similar types of walls which are not subjected to large stresses. On accounts of its good appearance, this bond is sometimes used for the construction of the outer leaves of cavity walls.

There are two types of garden wall bond,

(a) English garden wall bond
(b) Flemish garden wall bond

(a) English garden wall bond. The general arrangement of bricks in this type of bonding is similar to that of English bond except that the heading courses are only inserted at every fourth or sixth course. Usually the arrangement consists of one course of headers to three courses of stretchers. A queen closer is placed next to the quoin header of the heading course to give the necessary lap.

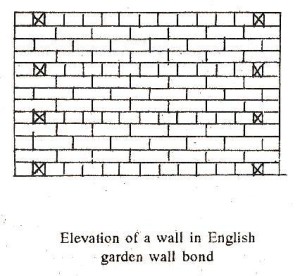

English garden wall bond

(b) Flemish garden wall bond. This consists of alternate course composed of one header to three or sometimes even five stretchers in series throughout the length of the courses. Each alternate course contains a three quarter bat placed next to the quoin header and a header is laid over the middle of each central stretcher.

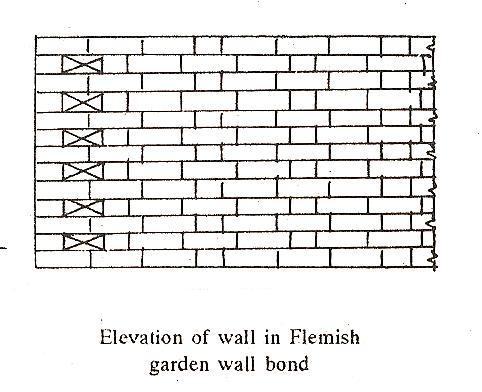

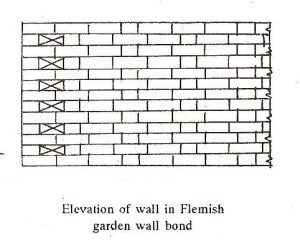

Flemish Garden wall bond

6.Facing bond:

This arrangement of bricks is adopted for thick walls, where the facing and backing are desired to be constructed with bricks of different thickness. This bond consists of heading and stretching courses so arranged that one heading course comes after several stretching courses. Since the number of joints in the backing and the facing differ greatly, the load distribution is not uniform. This may sometimes lead to unequal settlement of the two thickness of the wall.

7.Raking bond:

This is a bond in brick work in which the bonding bricks are laid at any angle other than zero or ninety degrees. This arrangement helps to increase the longitudinal stability of thick walls built in English bond. In this arrangement of bonding, the space between the external stretchers of a wall is filled with bricks inclined to the face of the wall. This bond is introduced at certain intervals along the height of a wall.

There arc two common forms of raking bond ;
(a) Herring hone bond
(b) Diagonal bond.

(a) Herring-bone bond. This type of bond is best suited for very thick walls usually not less than four bricks thick. In this arrangement of brick work, bricks are laid in course inclined at 45° in two directions from the centre. This bond is also commonly used for brick pavings.

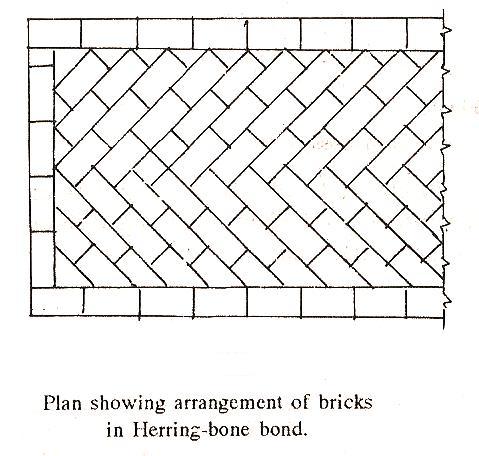

Herring-bone bond

(b) Diagonal bond. This bond is best suited for walls which are 2 to 4 brick thick. This bond is usually introduced at every fifth or seventh course along the height of the wall. In this bond, the bricks arc placed end to end in such a way that extreme corners of the series remain in contact with the stretchers.

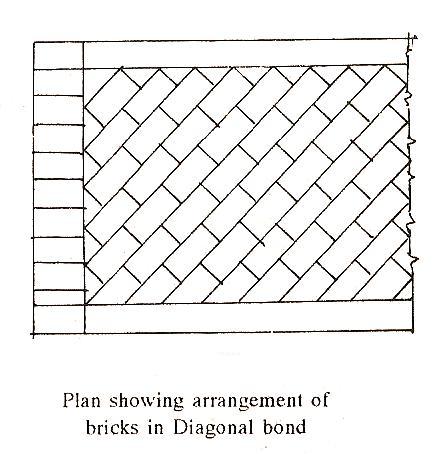

Diagonal Bond

8.Dutch bond:

This bond is a modification of the old English cross bond and consists of alternate courses of headers and stretchers. In this arrangement of brick work, each stretching course starts at the quoin with a three-quarter bat and every alternate stretching course has a header placed next to the three-quarter brick bat provided at the quoin.

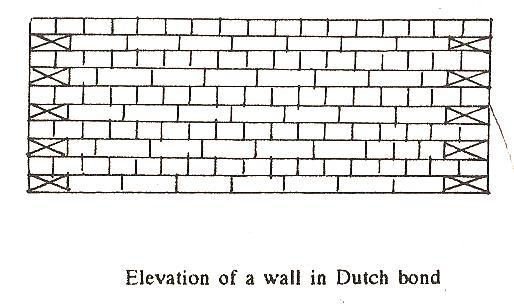

Dutch Bond

9.English cross-bond:

This is similar to English bond and consists of alternate course of headers and stretchers. However, in this bond, queen closer are introduced next to quoin headers and each alternate stretching course has header placed next to quoin stretcher. This bond is sufficiently strong and bears a good elevation.

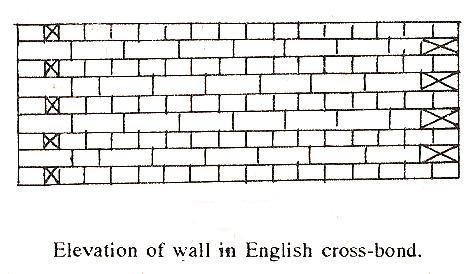

English Cross Bond

10. Zig-Zag bond:

This is similar to herring-bone bond with the only difference that in this case the bricks are laid in a zig-zag fashion. This is commonly adopted in brick paved flooring.

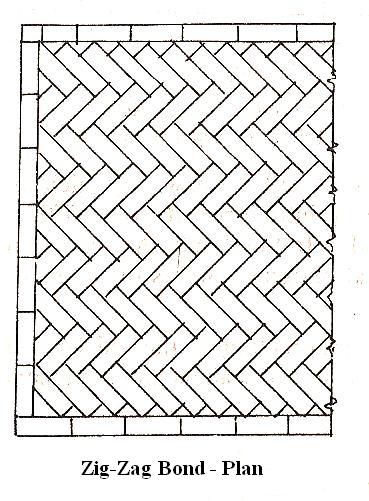

Zig zag bond

11. Silverlock’s bond:

This is a form of bonding brick-work in which bricks are laid on edge. It is economical but weak in strength and hence it is only recommended for garden walls or partition walls. In this bond, the bricks are laid as headers and stretchers in alternate courses in such a way that headers are laid on bed aid the stretchers are laid on edge forming a continuous cavity.
